Forklift Display Speed Limit System - Enabling Efficiency and Safety in Large Enterprise Logistics Centers

Background: Factory C has a blind spot in the safety management of forklift trucks, and speeding occurs from time to time, which poses a safety hazard to the factory's production.

Measures: Plant C introduced a Forklift Display Screen Speed Limit System,combined with voice alarms, sound and light reminders, and other functions to improve forklift safety management in all aspects.

I. System Overview

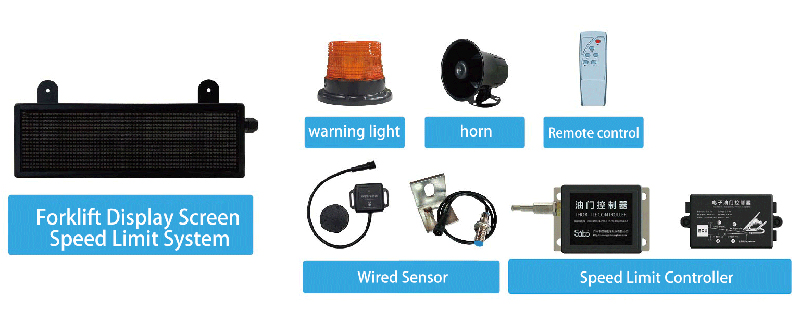

Forklift Display Screen Speed Limit System mainly includes two parts: speed limiter and LED display. The speed limiter is responsible for detecting the speed of the forklift and implementing corresponding speed limiting measures when the speed exceeds the preset value; the LED display is used to show the traveling speed of the forklift in real time.

II. Working Principle

1. Speed Detection: The forklift speed limiter confirms the current speed by detecting the forklift's speed sensor or wheel speed, and also monitors the driver's foot pedal to comprehensively determine the forklift's driving status.

2. Information Processing: When it is confirmed that the forklift speed is out of the maximum range, the speed limiter will transfer this information to the speed limiter host. The host will choose a lower maximum speed value between the preset speed limit value and the actual load value according to the load condition of the forklift and other related parameters.

3. Speed Limit Execution: After confirming the new maximum speed, the speed limiter starts to perform its function to limit the speed by using the automatic brake mechanism or controlling the throttle. At the same time, the LED display will show the traveling speed of the forklift in real time, so that the driver and the surrounding people can clearly understand the traveling status of the forklift.

III Functional features

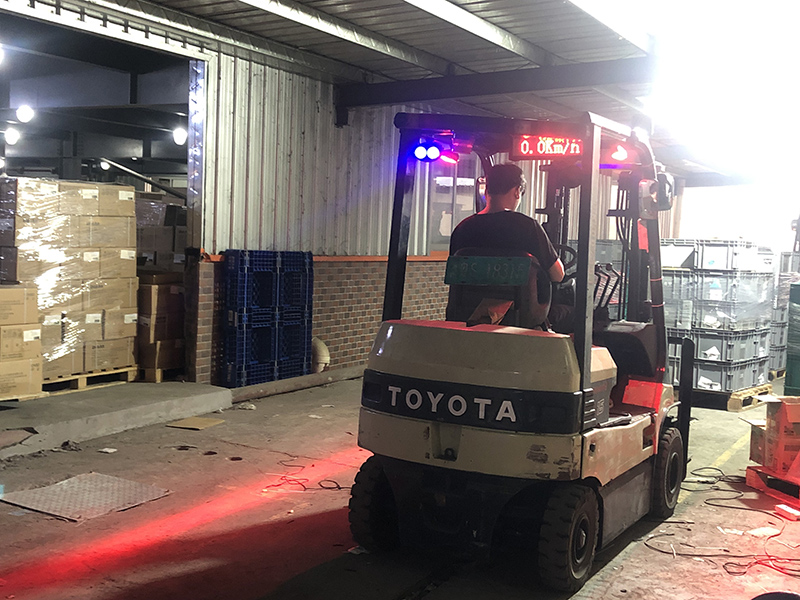

1. Real-time speed display: the LED display can show the traveling speed of the forklift in real time, so that the driver can grasp the speed situation at any time and avoid speeding.

2.Customizable content: the content on the display can be customized according to the actual needs, such as displaying safety tips, shift number, vehicle number and other information to enhance the standardization and traceability of forklift operations.

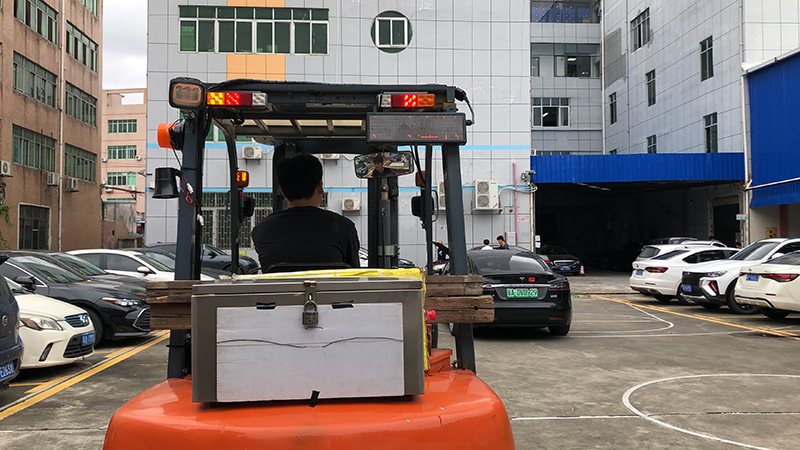

3. Multiple speed limiting methods: The forklift truck speed limiting system supports multiple speed limiting methods, including overspeed alarm, mandatory speed limiting and mandatory flameout. These methods can be selected according to 1. Safety supervision: Installing the LED display on the top of the forklift allows the personnel of the whole factory to see the traveling speed and status of the forklift, thus playing the role of supervising the driver's standardized operation and improving the overall safety management level.

With its intuitive and efficient features, the Forklift Display Screen Speed Limit System provides more comprehensive safety protection for forklift operations. Through the real-time display of driving speed, customizable content and multiple speed limit methods, the system not only enhances the safety awareness of drivers, but also strengthens the safety supervision ability of enterprises. Therefore, in the field of modern industrial logistics, forklift speed limit system has become one of the indispensable safety protection equipment.
